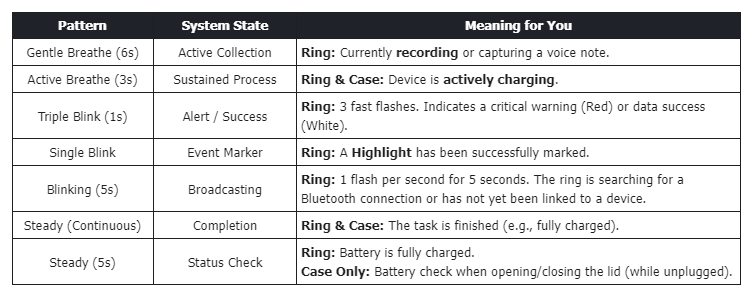

1. Identify the Light Motion (Behavior)
The rhythm of the LED tells you the device's current system state.

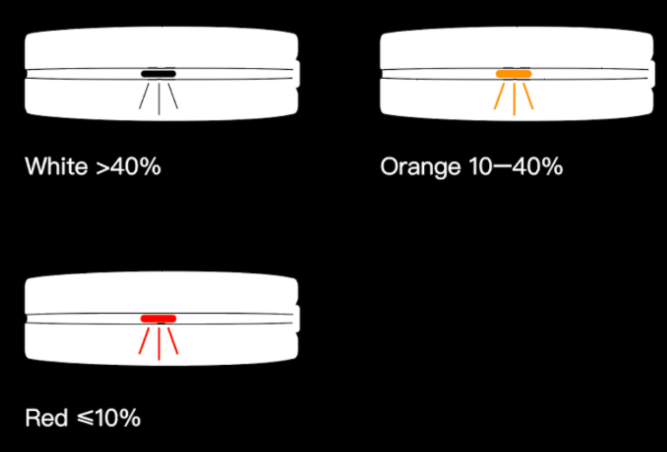

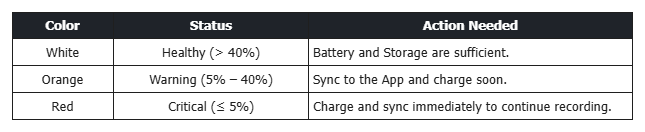

2. Decode the Color (Battery & Storage)
For recording and charging, the color indicates the "health" of your ring. This represents both Battery Level and Remaining Storage Space.
3. Common Scenarios
Alerts & Recording
- Triple Red Blink (1s): Battery is below 5% or Storage is 0%. The ring will pause new recordings until you charge and/or sync.
- Gentle Breathe (White/Orange/Red): Recording is in progress. The color reflects your current battery/storage health.
- Single White Blink: You have successfully marked a Highlight.
Connectivity & Data
- Blinking White (1 flash/sec for 5s): The ring is broadcasting and waiting to connect to the Vocci App.
- Triple White Blink (1s): Success! Your recorded audio has been successfully transferred to the app.
- Steady White (Dimming every 5s): Data transmission is currently in progress.
Charging Status
- Active Breathe White (3s cycle): The ring is properly docked and charging.
- Steady White (Continuous): Charging is 100% complete.
